Basic Info.
| Model NO. | 8F3B1H/8F3B80/8F3B1F/8F3B50/8F3B40/8F3B25/8F3B08 | Accuracy | ≤±0.1% |
| Main Application | Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas | Size | DN100-500 |
| Sensor | Tube/Flange | Application | Industrial Production |
| Type | Coriolis Mass Flow Meter | Measuring Principle | Atomic Physics |
| Measurement Object | Closed Pipeline | Certification | JIS, DIN, ANS, GB, CE, RoHS, ISO |
| Transport Package | According to Caliber and Weight | Specification | DN8-DN250 |
| Trademark | Endress Hauser | Origin | Europe or China |
| HS Code | 9026809000 | Production Capacity | 50000/Year |
Packaging & Delivery
| Package Size | 80.00cm * 60.00cm * 40.00cm |
| Package Gross Weight | 50.000kg |

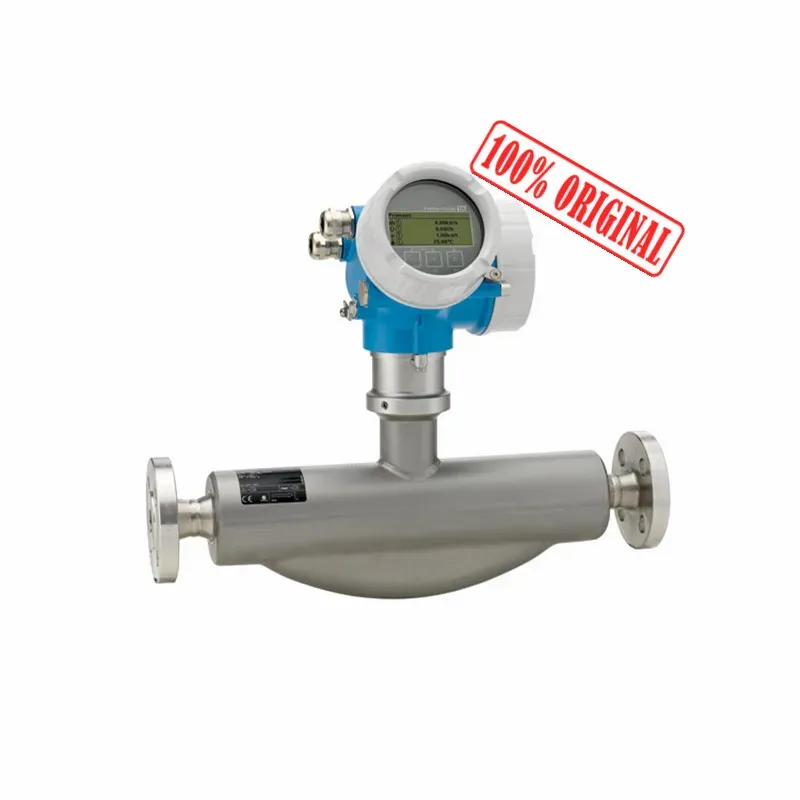

Flowmeter with Premium Accuracy and Robustness
Shenzhen Anyi Technology Co., Ltd. presents the Promass F flowmeter, known for its exceptional accuracy and robustness. This flowmeter is designed for a wide range of applications, offering reliability in fluctuating and harsh environments.
Key Features
Compact transmitter for easy accessibility
High flexibility in operation and system integration
Heartbeat Technology for measurement reliability
Independent operation from fluid properties like viscosity or density
Measurement error of ±0.05%
Temperature range from -196 to 350 °C (-320 to 662 °F)
Nominal diameter from DN 8 to 250 (0.375 to 10")
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display option available
Experience the highest measurement performance for liquids and gases under varying process conditions with the Promass F flowmeter from Shenzhen Anyi Technology Co., Ltd.
| DN [mm] in |
Measuring range full scale values mmin(F) to mmax(F) [kg/h] |
[lb/min] | |
| 8 | 3/8 | 0 to 2000 | 0 to 73.50 |
| 15 | 1/2 | 0 to 6500 | 0 to 238.9 |
| 25 | 1 | 0 to 18000 | 0 to 661.5 |
| 40 | 1-1/2 | 0 to 45000 | 0 to 1 654 |
| 50 | 2 | 0 to 70000 | 0 to 2573 |
| 80 | 3 | 0 to 180000 | 0 to 6 615 |
| 100 | 4 | 0 to 350000 | 0 to 12 860 |
| 150 | 6 | 0 to 800 000 | 0 to 29 400 |
| 250 | 10 | 0 to 2200000 | 0 to 80 850 |
Promass Flow Meters
Introducing the Promass F 300 and F 500 series from Shenzhen Anyi Technology Co., Ltd.
Promass F 300 series
Models: 8F3B08, 8F3B15, 8F3B25, 8F3B40, 8F3B50, 8F3B80, 8F3B1H, 8F3B1F, 8F3B2F
Promass F 500 series
Models: 8F5B08, 8F5B15, 8F5B25, 8F5B40, 8F5B50, 8F5B80, 8F5B1H, 8F5B1F, 8F5B2F
Promass E 300 series
Models: 8E3B08, 8E3B15, 8E3B25, 8E3B40, 8E3B50, 8E3B80
Promass E 500 series
Models: 8E5B08, 8E5B15, 8E5B25, 8E5B40, 8E5B50, 8E5B80
Key Features:
High accuracy
Reliable performance
Wide range of models to choose from
Suitable for various industrial applications
Don't compromise on quality and precision. Choose Endress Hauser Promass E/F 500/300 Flow Meters for your industrial needs.
