Basic Info.
| Model NO. | NMS81/NMS80/NMS83 | Range | 0-20m |
| Measurement Accuracy | ±3mm | Accuracy | 0.1% |
| Kind | Liquid Level Transmitter | Structure | All in One |
| Warranty | 1 Year | Certification | CE, RoHS |
| Material | SS360L | Process Temperature | -40~120℃ |
| Max. Measurement Distance | 47 M | Main Wetted Parts | 316L, Alloyc276, PTFE |
| Power Supply | 85-264VAC 52-74VAC 19-64VDC | Communication | Fieldbus: Modbus RS485, V1, Wm550 Hart, Bpm and Tr |
| Safety Approvals | Overfill Protection Whg Sil | Transport Package | Carton |
| Specification | 30kg | Trademark | Endress+Hauser |
| Origin | Europe or China | HS Code | 9026809000 |
| Production Capacity | 50000/Year |
Packaging & Delivery
| Package Size | 80.00cm * 60.00cm * 40.00cm |
| Package Gross Weight | 30.000kg |

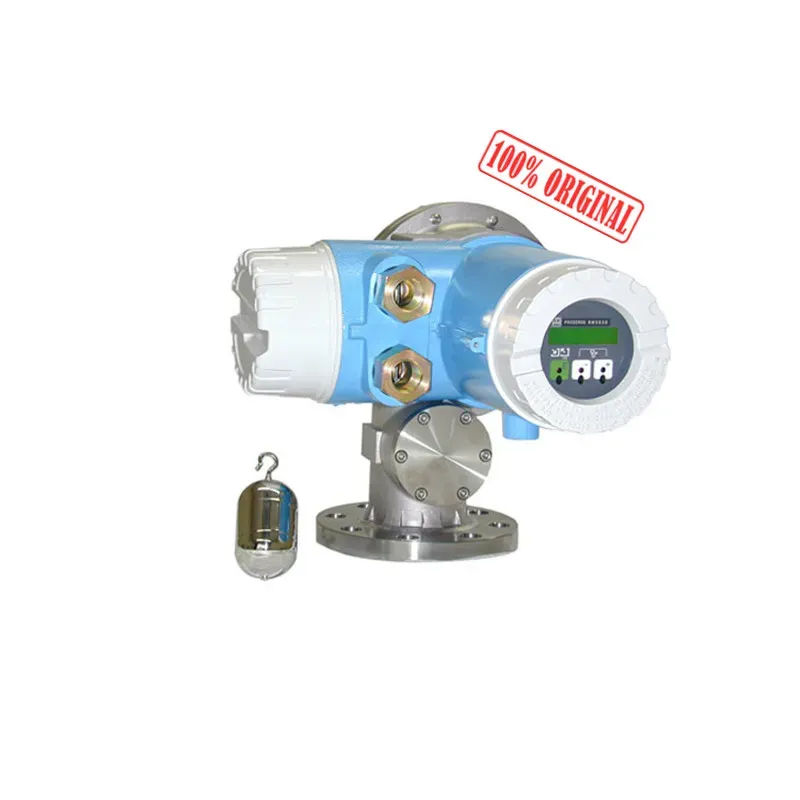

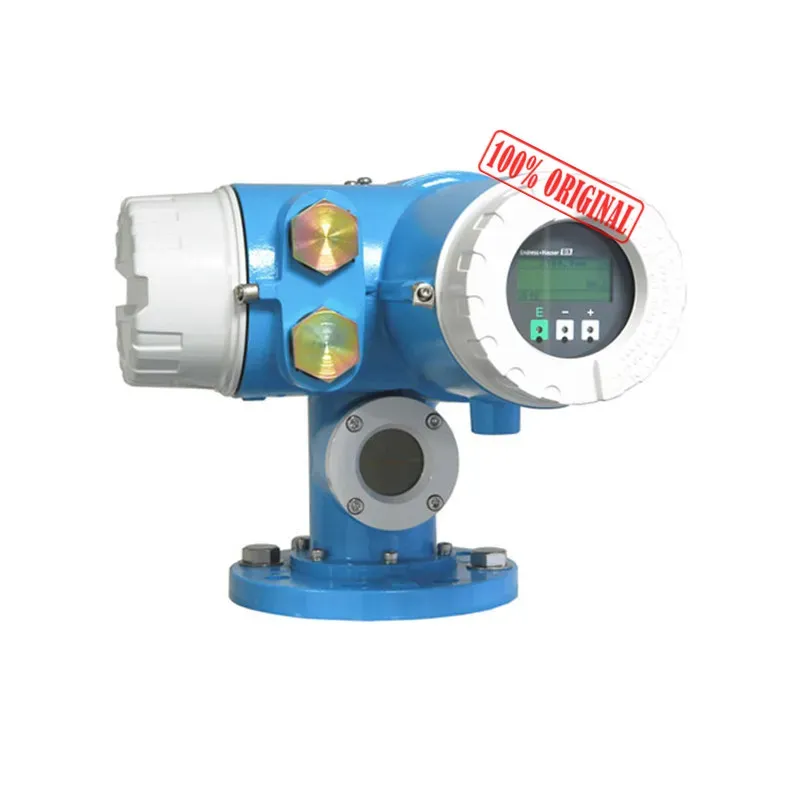

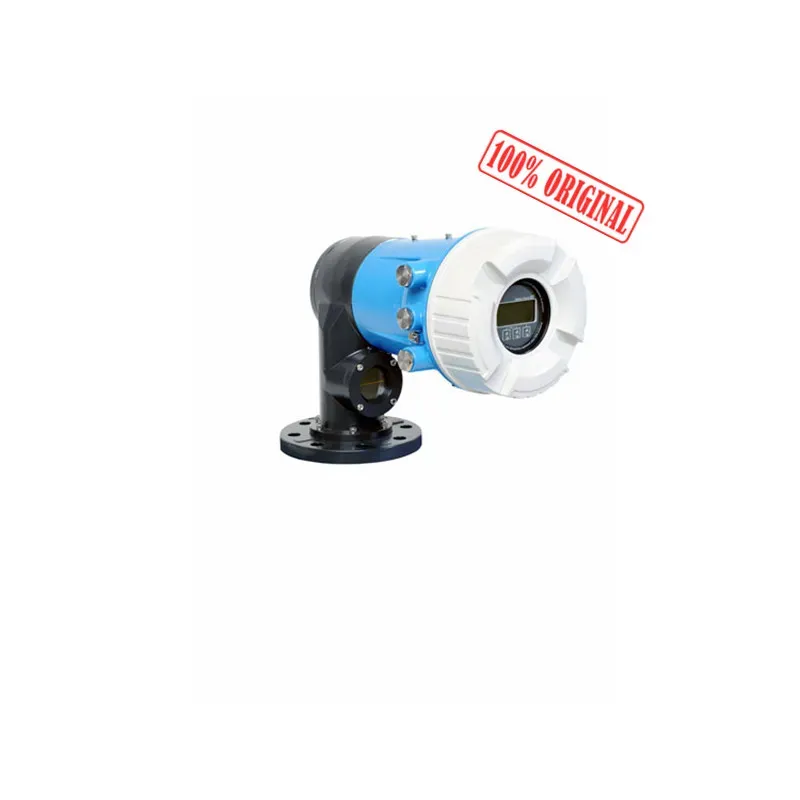

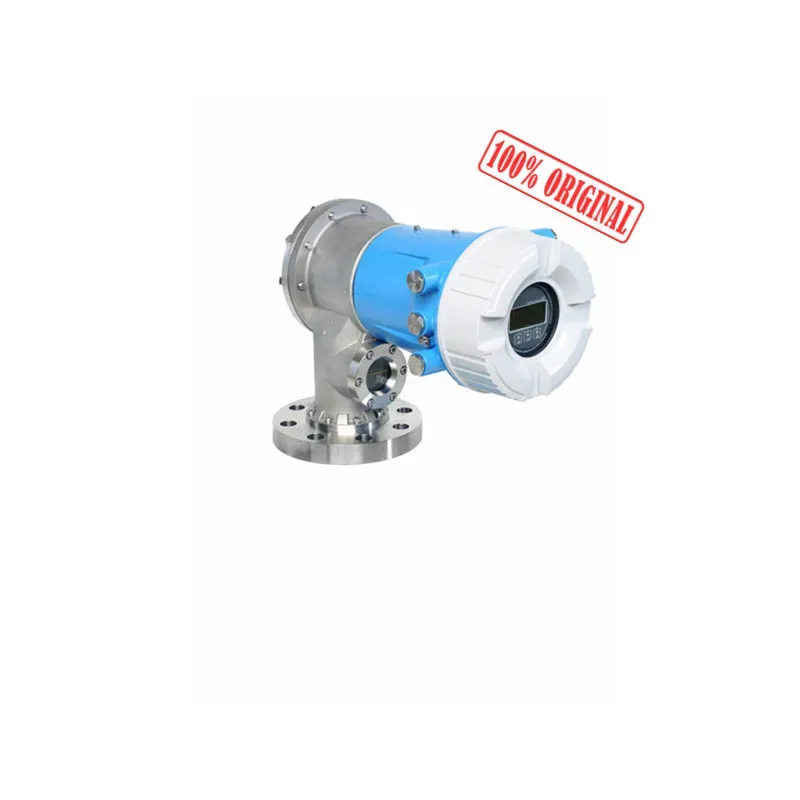

Endress+Hauser Servo Tank Gauging Proservo NMS81/NMS80/NMS83
Field of Application:
The intelligent tank gauge Proservo NMS81 is designed for high accuracy liquid level measurement in custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. It fulfills the exact demands of tank inventory management and loss control and is optimized in regards of total cost saving and safe operation.
For high accuracy custody transfer measurement in crude oil, gasoline, diesel, petrochemicals, and chemicals.
Specifications:
Process connections: Flanges
Temperature: -200 to +200°C (-328 to +392°F)
Pressure: 0 to +25bar (0 to +362psi)
Maximum measuring range: 47m (154ft)
Accuracy: ±0.4mm (±0.02")
Benefits:
Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy) for a high level of safety
Maximum reliability through accuracy up to ±0.4mm (± 0.02")
Developed according to international metrology recommendations such as OIML R85 and API MPMS
Local and country-specific certifications like NMi or PTB for custody transfer applications
Superior corrosion resistance with 316L materials in the process compatible with sour applications such as crude oil
Measurement of interfaces between up to three liquid layers, tank bottom, spot, and profile densities
Best fit for LNG/LPG applications without the influence of dc value or Boil Off Gas
Company Name: Shenzhen Anyi Technology Co., Ltd.
Proservo NMS5 NMS81/80/83
Proservo NMS5 is a high-quality product offered by Shenzhen Anyi Technology Co., Ltd. It includes various common codes such as proservo nms53, proservo nms80, and proservo nms81. The product is designed to meet your industrial needs efficiently.
Key Features:
Advanced technology for precise measurements
Compatible with various industrial applications
Durable and reliable performance
nms5-4jdp00cll3d0a1
nms5-1udp00hgl4d0a
nms5-1uap00hll3d0y
Benefits:
Enhances productivity in industrial processes
Ensures accurate data for better decision-making
Easy to install and use
Don't miss out on the Proservo NMS81/80/83 for your industrial needs!
