Basic Info.
| Model NO. | NMT539/NMT532/NMT81 | Display Type | LCD |
| Site Display | According Type | Accuracy | 0.5 |
| Certification | CE | Customized | Customized |
| Max. Process Pressure | at 20 °c: 400 Bar | Max. Immersion Length | up to 40.000,00 mm |
| Process Connection | Weld in Version Flange: | Response Time | Depending on Configuration |
| Measuring Principle |
Resistance Temperature Detector
|
Transport Package | Carton |
| Specification | according type | Trademark | Endress Hauser |
| Origin | Europe or China | HS Code | 9026809000 |
| Production Capacity | 50000/Year |
Packaging & Delivery
| Package Size | 80.00cm * 60.00cm * 40.00cm |
| Package Gross Weight | 30.000kg |
Field of application

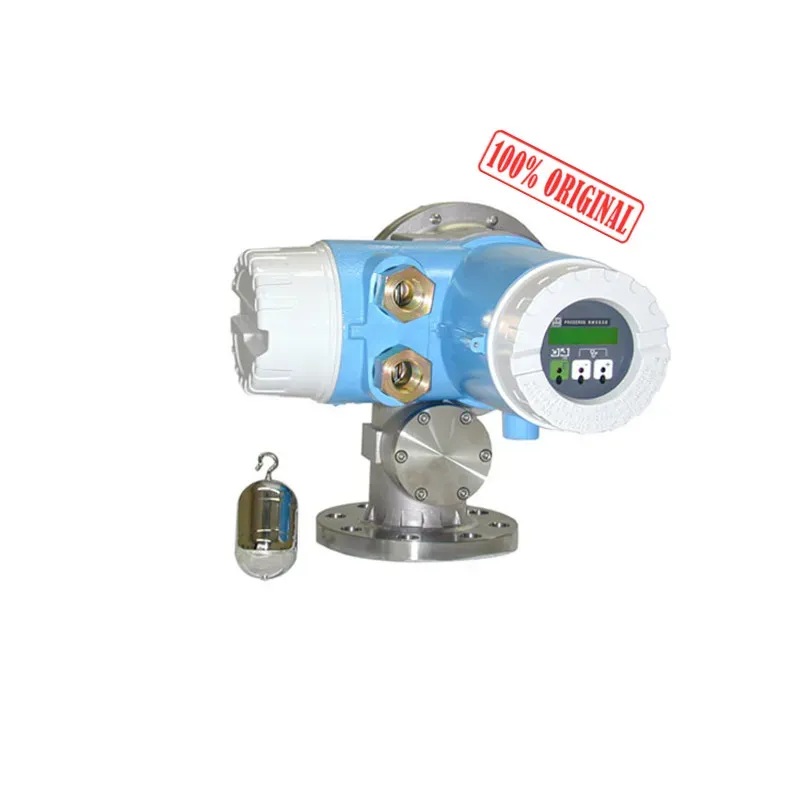

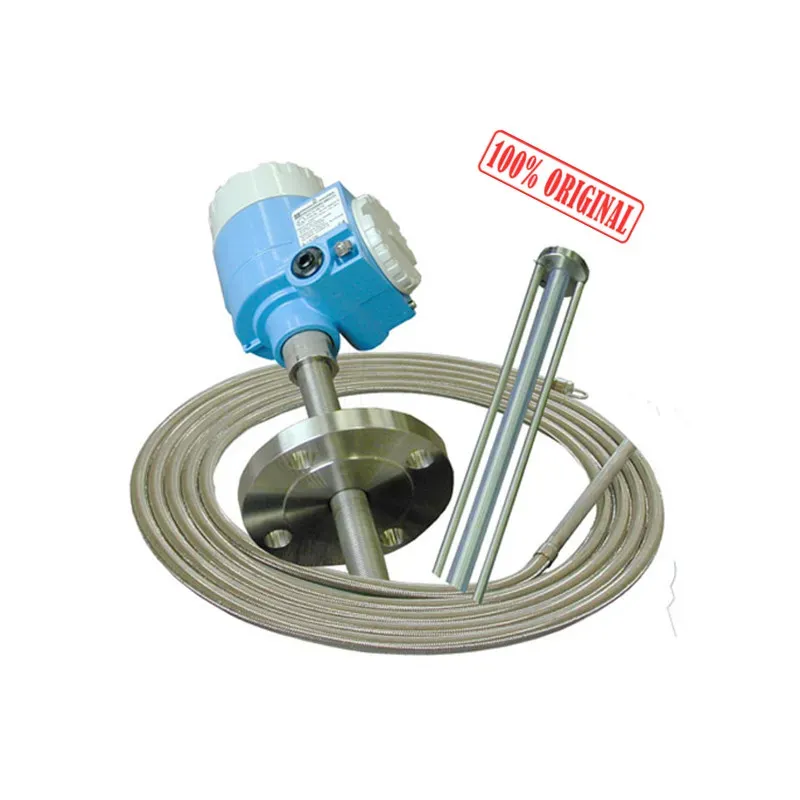

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.
For precision average temperature and water bottom measurement.
Process connection: Flanges
Temperature: -40 to +100°C (-40 to +212°F)
Measuring distance: 40m (131.2ft)
Accuracy: ± 0.1°C
International explosion protection certificates
Benefits
Intrinsically safe device allowing for the safest electrical configuration possible
Available in four different versions based on customer requirements:
Converter only
Converter and temperature probe
Converter and water bottom probe
Converter, temperature and water bottom probe
Converter is compatible with various element types in third party manufacturer temperature probes
Compatible with Endress+Hauser's user friendly FieldCare
Variety of process connections and cable entries available to meet worldwide classifications
High reliability and easy installation
Maintenance free
